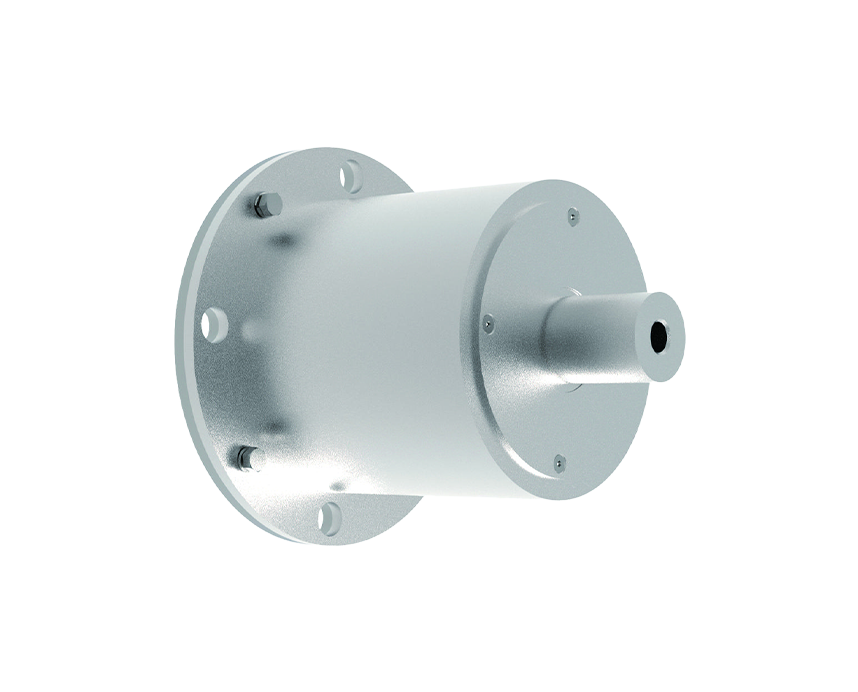

The overall structure of the all-metal three-way equal-rigidity vibration isolator uses only metal materials, and has excellent performance with consistent static and dynamic stiffness in multiple directions. It can withstand various extreme environments, has high strength and a stable and reliable structure. It can maintain stable performance in complex, changeable and extreme working environments, and provide vibration reduction and isolation protection for various types of equipment or pipelines.
The overall structure of the standard model is made of 304 stainless steel, and the internal components are all-metal elastic components. The material can also be customized according to customer needs to adapt to various working conditions.
The unique three-way equal stiffness structure design allows the product to be installed upright, sideways or hoisted. The all-metal structure has excellent resistance to oil, solvents, water, chemicals, extreme temperatures and radiation.
The internal metal rubber material has a nonlinear stiffness, has a good impact and vibration reduction effect, and ensures a large structural strength.
The product is not damaged under 15 times the rated load and can be reset to work normally; built-in limit device.
The natural frequency range is 6-20Hz.
The storage period of the all-metal vibration isolator is 3 years and the service life is 10-15 years.
