For pipeline vibration isolation solutions, Ovida provides two products: multi-degree-of-freedom hangers and all-metal pipe clamps, which are designed to solve vibration and displacement problems in complex pipeline systems. Multi-degree-of-freedom hangers have flexible installation methods to meet the installation requirements of pipelines at various angles and directions, effectively reduce vibration transmission, and ensure the stability and safety of the pipeline system. All-metal pipe clamps adopt an integral metal structure, which can withstand various extreme environments and has a long service life, providing excellent vibration reduction performance for pipelines.
Ovida’s pipeline solution has stable performance and longer service life under special working conditions such as ultra-high temperature, ultra-low temperature, and irradiation, which has obvious advantages over traditional rubber hangers.

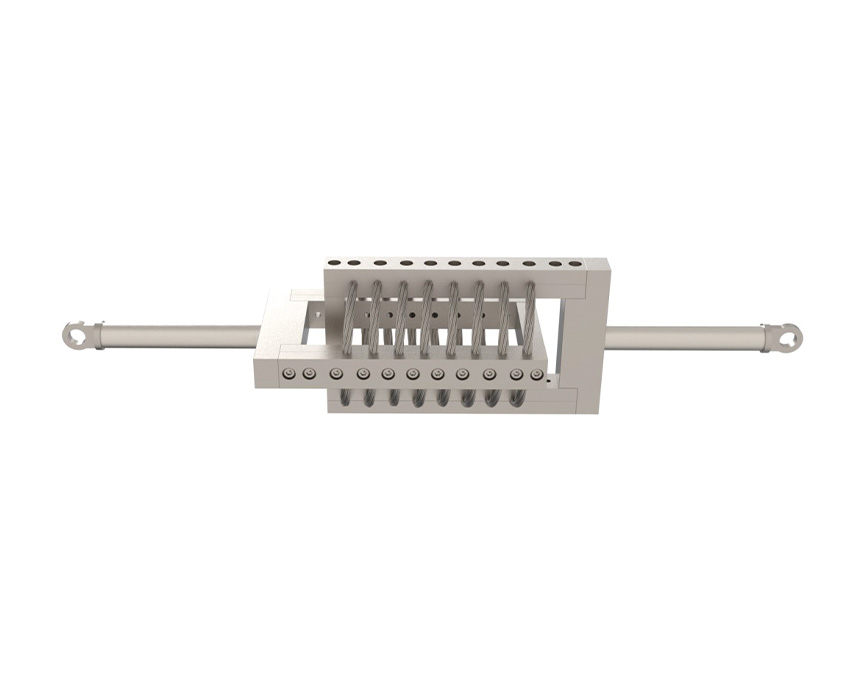

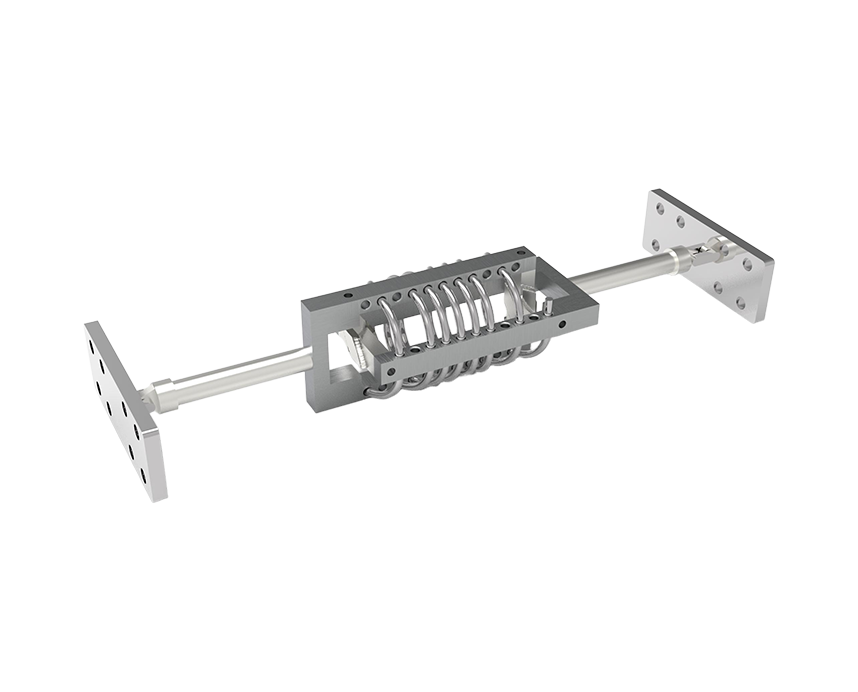

Unique structural design, multiple degrees of freedom to provide rigidity and support;

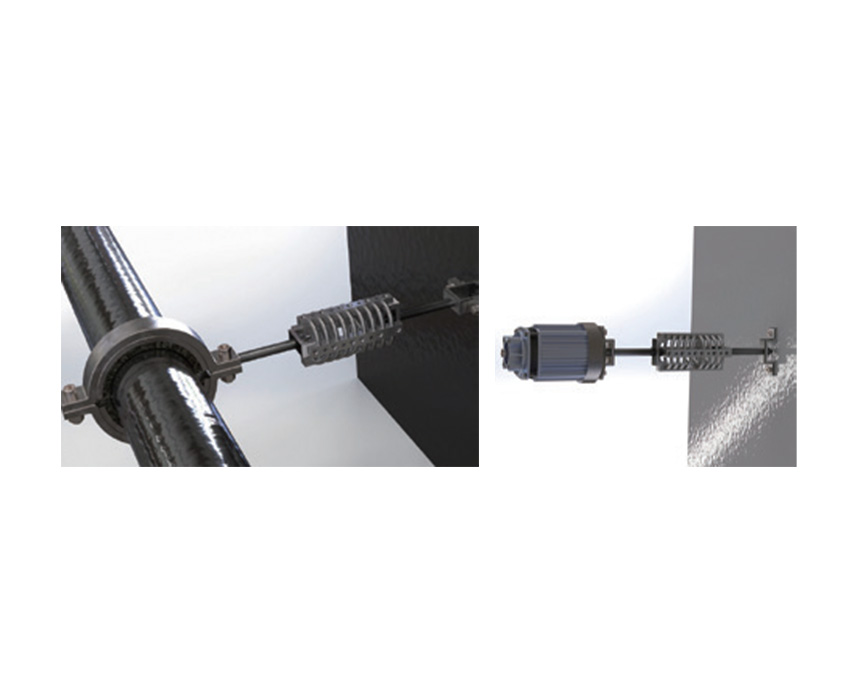

Applicable to any installation angle, including vertical, lateral, oblique support, hoisting, etc.;
Linear mechanical performance curve
Overload protection in the stop (pressed or pulled) position
High vibration reduction capacity

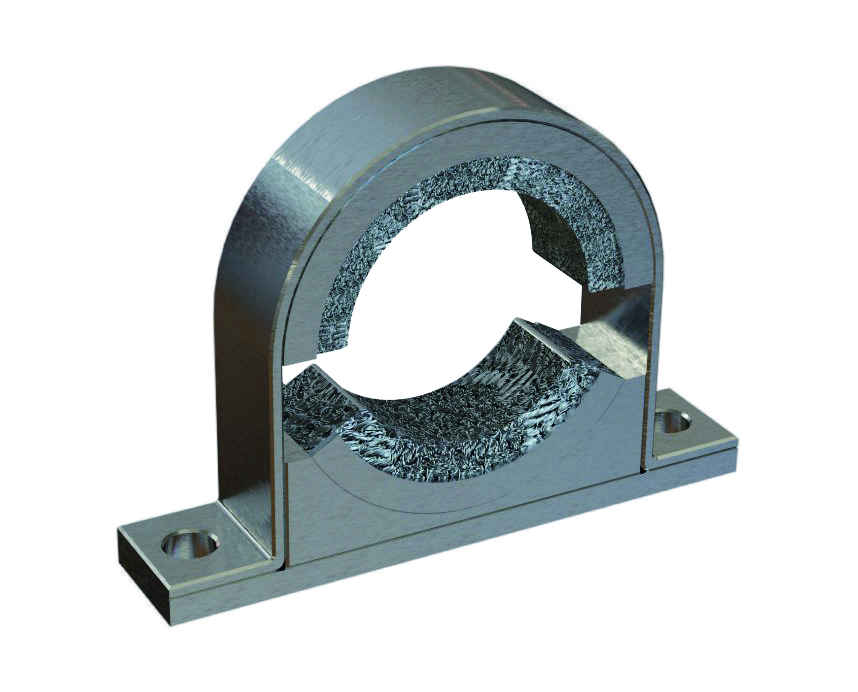

All-metal structure, resistant to various extreme environments, including high temperature, low temperature, corrosion, radiation, etc.; Can work normally in the temperature range of -70 ℃ ~ +300 ℃; Excellent vibration absorption and energy dissipation performance, strong impact resistance; natural frequency 10Hz ~ 25Hz.
The standard material is 304 stainless steel, and the material can be customized according to customer needs.
The storage period of all-metal pipe clamps is 3 years, and the service life is 10-20 years.
The storage period of multi-degree-of-freedom hangers is 3 years, and the service life is 10-20 years.
